Description
Presentation of theECG Cardioline Touchecg HD+

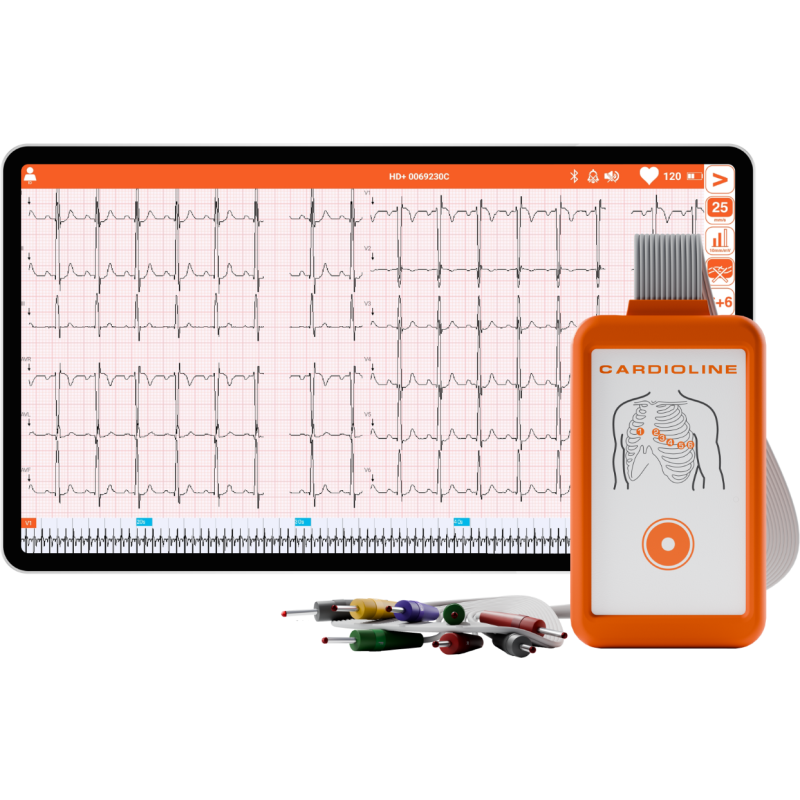

L'Touchecg HD+ electrocardiograph is a device to 12 leads for Resting ECG, designed for systems Windows. Comes with a 10-inch tablet and a hard carrying case, he uses technology Bluetooth for smooth communication between the acquisition module HD+ and the software Touchecg.
Technical specifications
- Weight : 90 g
- Impact resistance: up to 1 m
- Water resistance: IP 40 / IP 42 with silicone cover
- Impression A4 via connection Wifi
- System : Windows 10 or higher (32/64 bit)
- File formats: .scp, .pdf, .png, .jpg, XML, GDT, DICOM (option)
- Standards : ANSI, ACC, AAMI, AHA
- Dual mode: manual or monitoring
- Recording until 30 minutes
Key benefits
- Portability : ultra-light and compact
- Autonomy up to 1000 ECG per charge
- Connectivity : integration with Doctolib, PACS, and hospital systems via DICOM
- Ease of use : simplified mode for paramedical staff
- Option Glasgow algorithm for diagnostic assistance
Applications and models

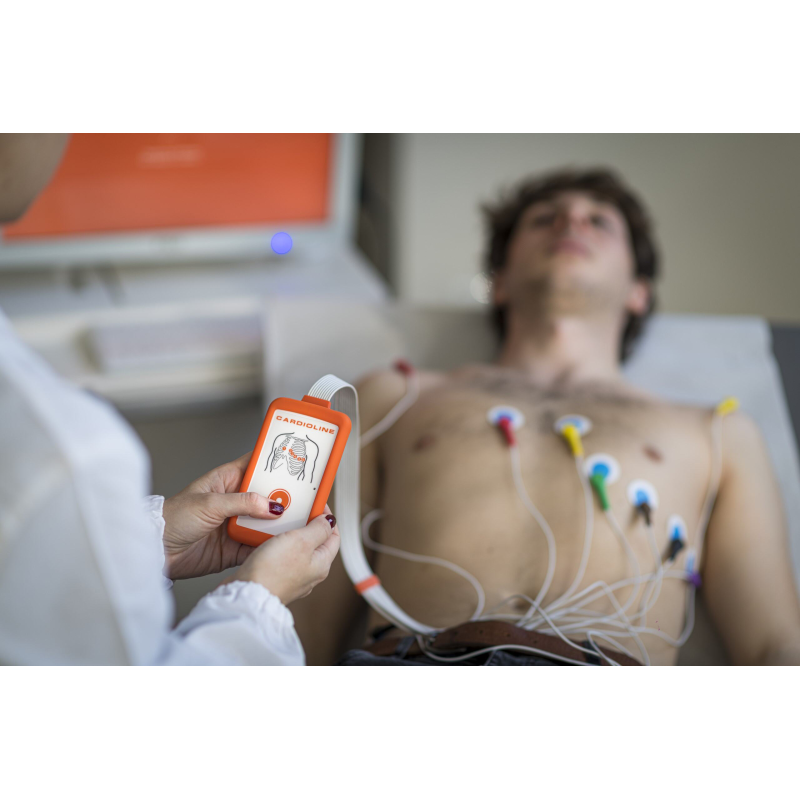

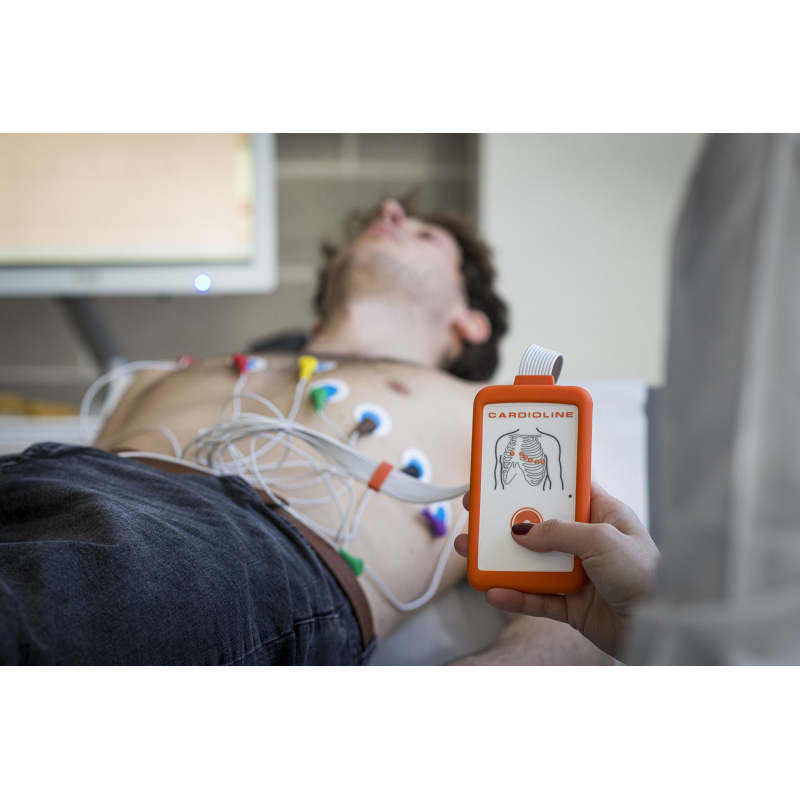

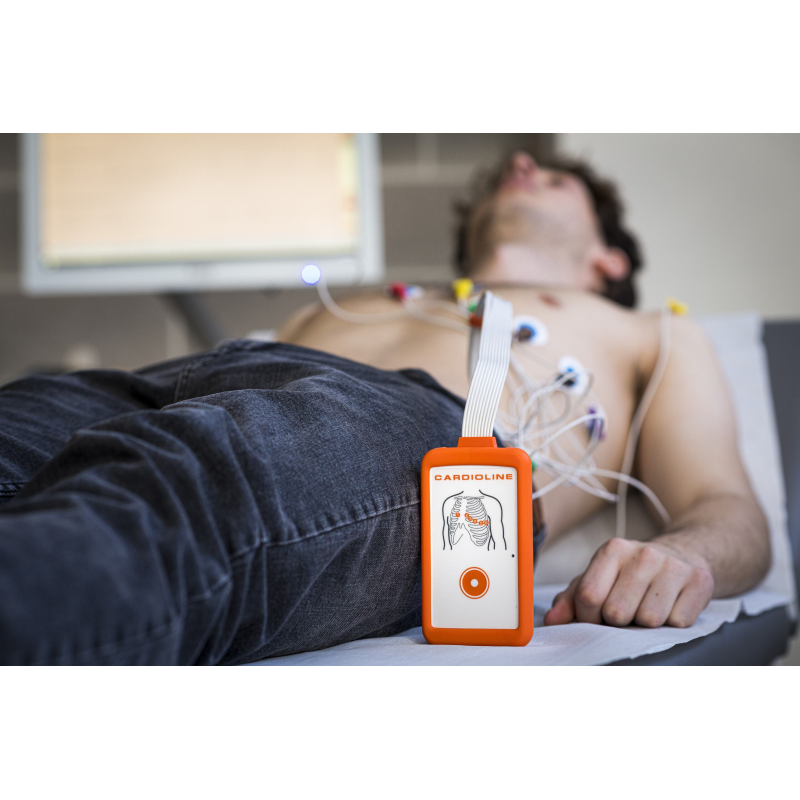

L'ECG Touchecg HD+ is ideal for hospitals, THE home care, and the emergency services. It offers a mode adapted for the firefighters, paramedics, And nurses. Models available: with or without tablet, with banana plugs or pressure cable, and option Glasgow interpretation.
Additional information
| Model | |
|---|---|
| Configuration |
Technical information
ECG Cardioline Touchecg HD+ Bluetooth electrocardiograph (12 tracks) for Windows
General characteristics
- Kind : Digital
- Stress test: No
- Format: Compact, pocket-sized
- Origin : Italy
- Dimensions : 115 x 65 x 15 mm
- Weight : < 90 g
- Guarantee : 2 years (Cardioline accessories: 3 months)
Display and printing
- Screen : No
- Touch screen : No
- Built-in printer: No
- External printer connection: Yes, via software
- Maximum number of derivations: 15 (12 classics + 3 calculated according to Frank)
- Paper : A4 format
- Exporting the plots: Formats SCP, PNG, JPG, PDF, XML, GDT, DICOM (optional)
Connectivity and storage
- Internal memory: Automatic registration in the software database
- Wi-Fi: Yes
- Bluetooth: Yes, via HD+ module
Software
- Touchecg Software: Installable on up to 3 computers
- ECG Interpretation: Option with Glasgow algorithm
Items provided
- 10-inch Windows tablet
- HD+ User Manual and Software Installation Guide
- Protective shell (ref. 19436ARD)

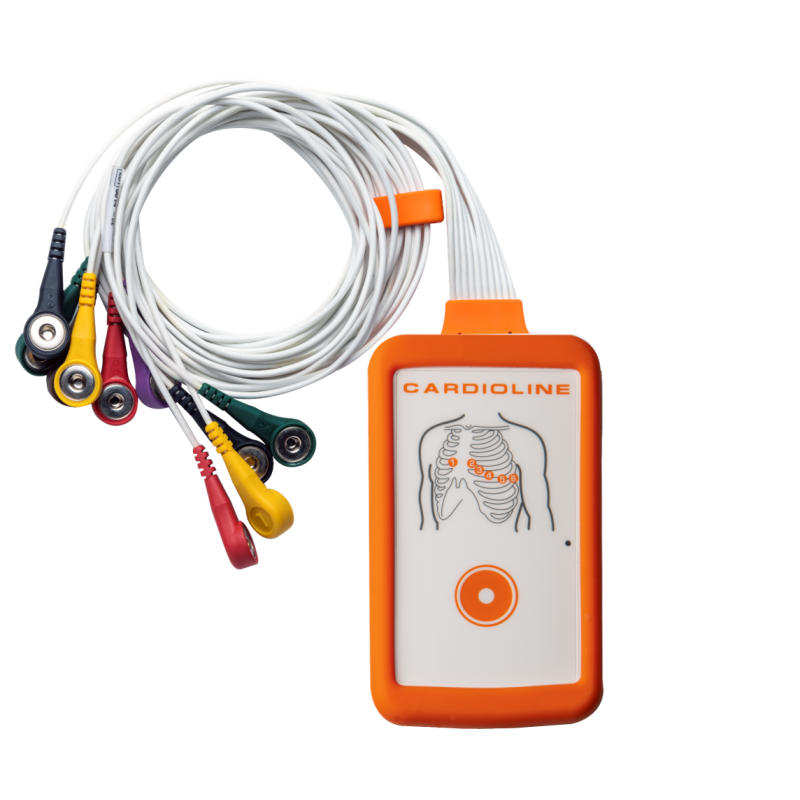

- 10-lead patient cable with banana plugs, 100 tab electrodes, 10 ECG adapters (ref. 30214ARD, 30215ARD-PACK)
- Pressure Patient Cable, 50 Pressure Electrodes (Ref. 30217ARD, 30363ARD-PACK)
- 1.5V AA battery
- USB backup key
Accessories and options
- Protective cover: Ref. 19436ARD, 19437ARD
- Patient cable: Ref. 19434ARD
- BT/USB adapter: Ref. 18865ARD
- ECG Gel: Ref. 18912ARD
- Cart : Ref. 19048ARD
- Training: Ref. 19043ARD
- Warranty extension: Ref. 91275ARD
