Description

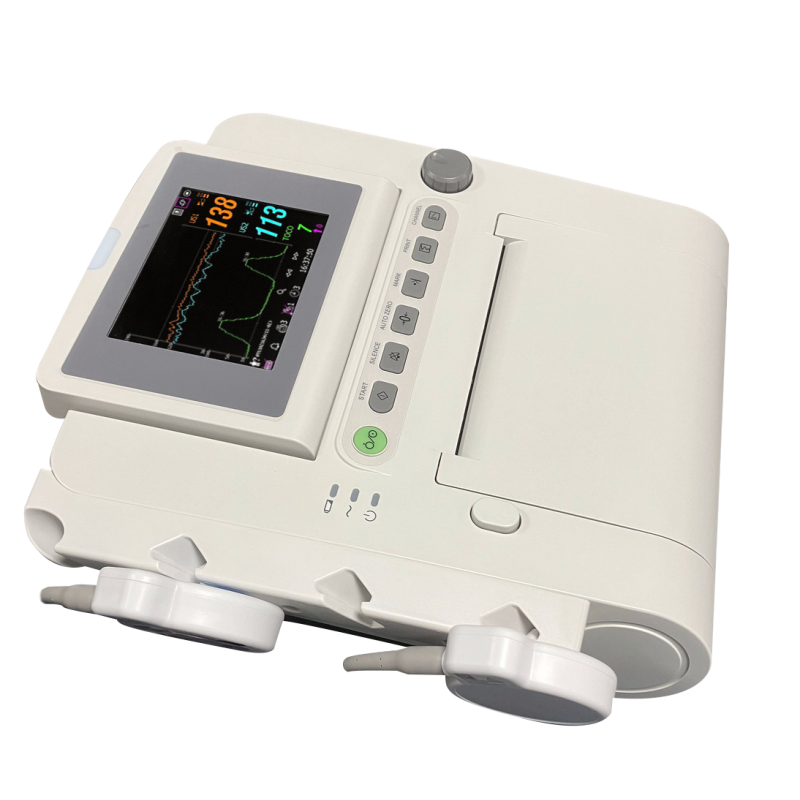

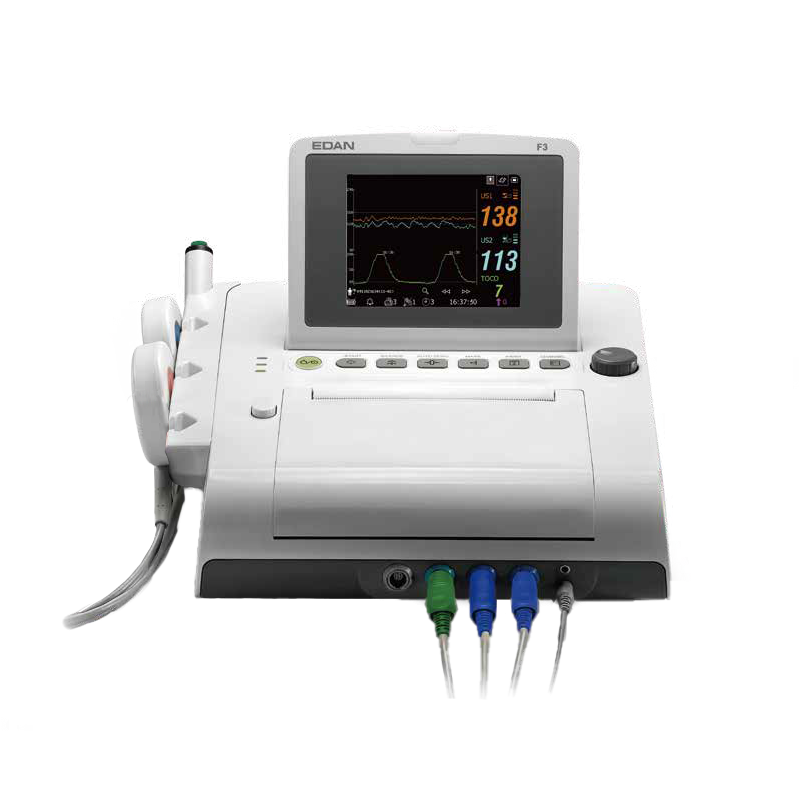

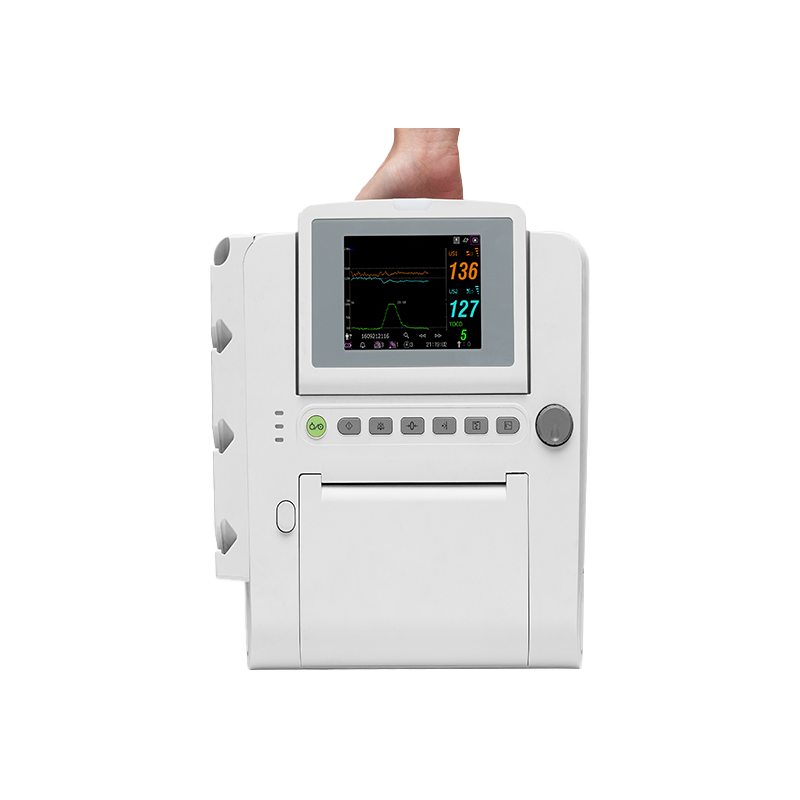

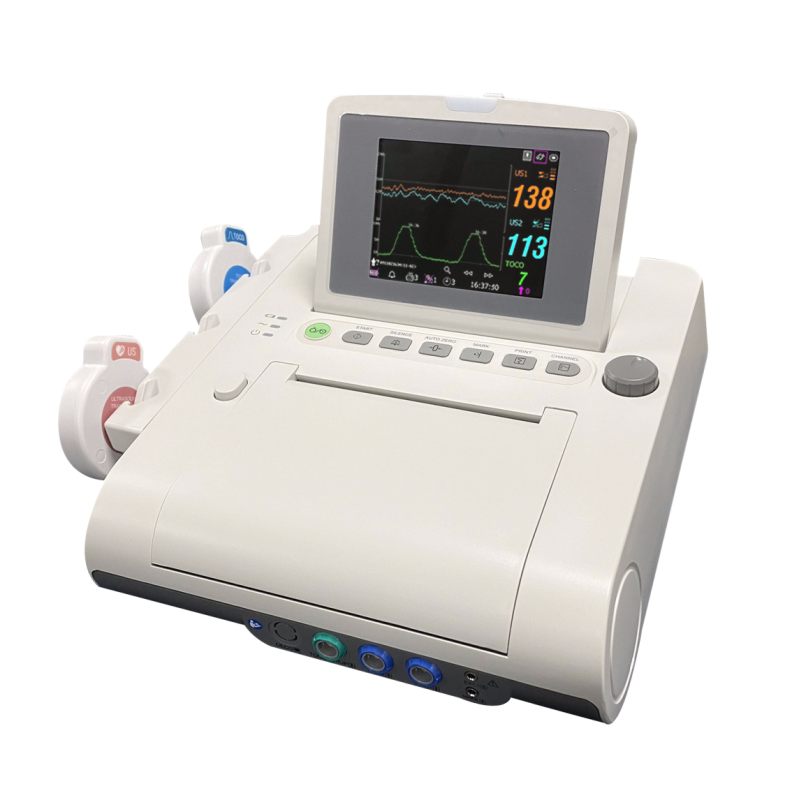

Presentation of the Edan F3 Single Cardiotocograph
Visit cardiotocograph Edan F3 Single with VCT is designed for fetal monitoring, suitable for clinics, hospitals and midwives. Compact, lightweight and portable, it incorporates a color LCD screen of 5.6 inches and monitors essential parameters such as TOCO, RCF and fetal movements.
Technical specifications
- Foldable LCD screen for easy reading of plots
- Technology RCF à 1MHz with signal quality indicator
- Battery Li-ion long-lasting for ambulatory use
- Internal memory of 12 hours and port USB for extended storage
- Optional software: Edan Insight for data management, MFM-CNS for centralized monitoring
Available models
- Mono fetal version : 1 sensor RCF
- Twin version : 2 sensors RCF
- Pack fetal mono + carrying bag ClediGyn
- Pack twin + carrying bag ClediGyn
Care instructions
To extend the life of the Edan F3 Single monitor, disconnect the probes after each examination and follow the recommendations in the user manual. Avoid transporting the device with the probes connected to preserve their functionality.
Additional information
| Model | |
|---|---|
| Configuration |
Technical information
Edan F3 Single Cardiotocograph / Fetal Monitor + VCT
Type and Compatibility
- Suitable for single or twin pregnancies (twin option available)
- Model with wired sensor
Screen
- Type: Color LCD
- Size: 5.6 inches
Sensors and Probes
- High sensitivity IPX8 sensors
- 1 MHz RCF Sensor (Ref. 22905RAF)
- TOCO Sensor (Ref. 21361RAF)
Impression
- Built-in high-resolution thermal printer
- Paper: 150 mm x 100 mm
- Print speed: 1, 2 or 3 cm/min, or fast at 15 mm/s
Communication and Export
- Internal memory: 12 hours of viewable tracks
- PC compatible via USB port
- Optional software: MFM CNS Lite (Windows, Ref. 22373RAF)
Technical Specifications
- Doppler: Frequency of 1 MHz ± 10%
Items Provided
- 1 external TOCO sensor
- 1 RCF sensor (2 for the twin version)
- 3 abdominal straps
- 1 bundle of paper
- 1 Li-ion battery
- 1 AC power cord
- 1 event marker
Accessories and Consumables
- Papers: Ref. 29749RAF, 20884MME
- Bag: Ref. 19110RAF
- Bag + trolley: Ref. 22326RAF
Physical Characteristics
- Dimensions: 35 x 30 x 10.4 cm
- Weight: 4.4 kg
- Warranty: 3 years (sensors: 1 year)
