Description
Presentation of the Examination Couch

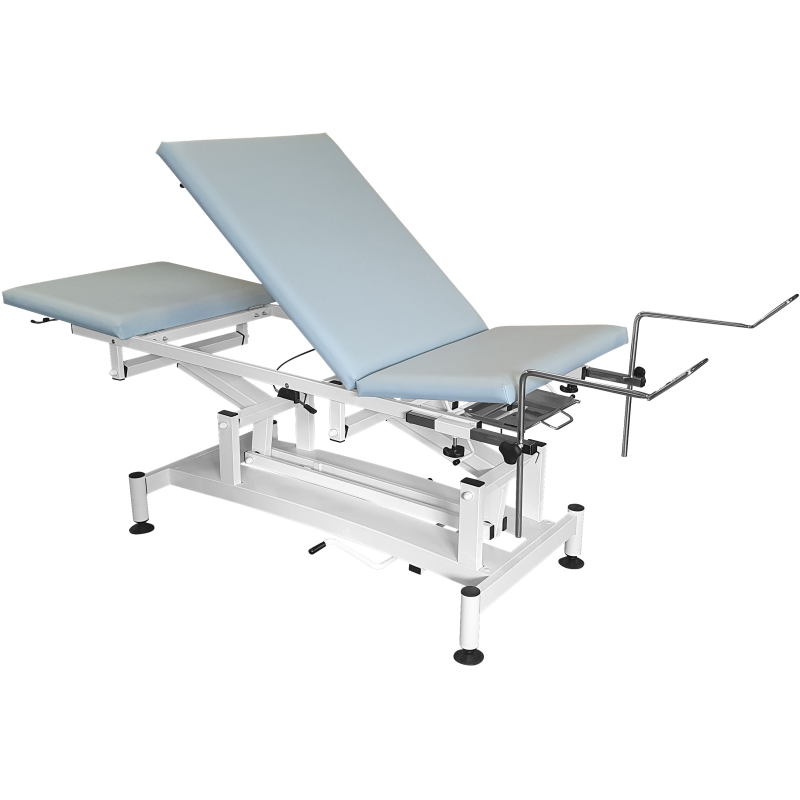

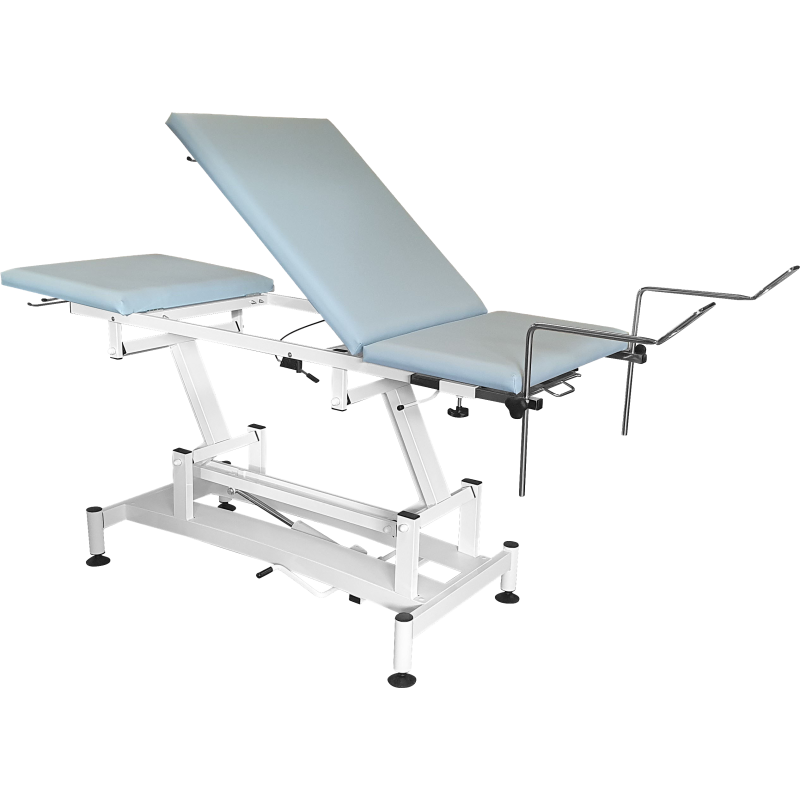

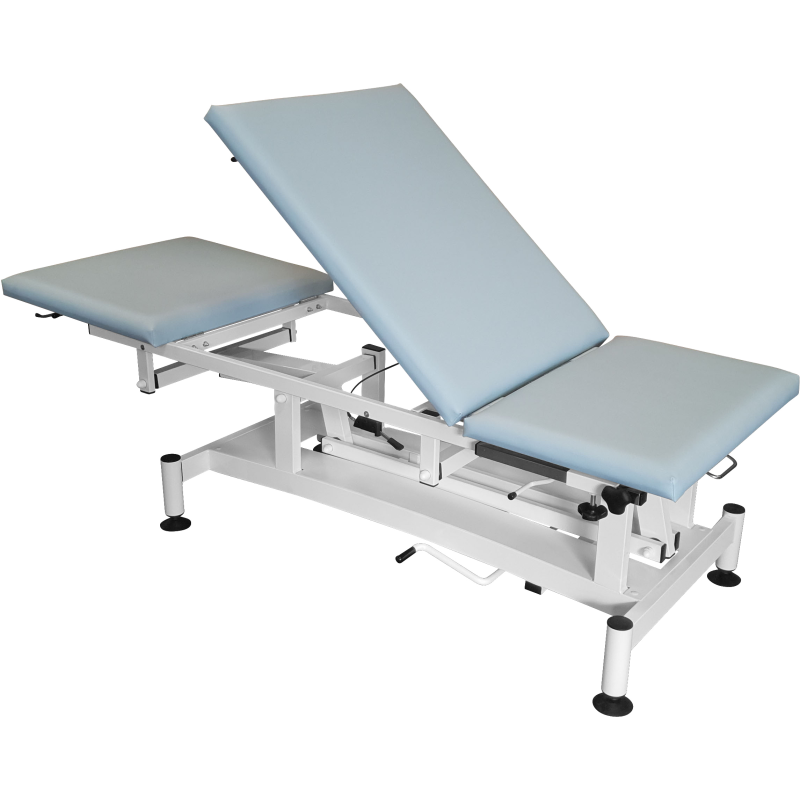

Visit Vog Médical Caix 3-section hydraulic examination couch, made in France, offers a classic and functional design for medical centers. With customizable upholstery in various colors, it incorporates 4 cm thick foam and a density of 28 kg/m³ for optimal patient comfort.
Technical Characteristics
- Structure made of rectangular tubes with coating white epoxy, supporting up to 300 kg.
- Adjustable height from 58 to 96 cm via a mechanism hydraulic foot-operated.
- Backrest and central part adjustable by gas springs with cable control.
- Manually adjustable seat for increased flexibility.
- Four adjustable black skates polyamide for optimal stability.
Features and Accessories
- Quick transformation from table to examination chair for various medical specialties.
- Equipped with sliding sockets for stirrups (sold separately).
- Includes a stainless steel bowl and a double roll holder (head and central part).
- Additional options: protection Crystal PVC full or for feet (sold separately).
Available Models
- Width of 67 cm.
- Width of 80 cm.
Additional information
Technical information
Vog Médical Caix 3-section hydraulic examination couch
Key features
- Article : Vog Médical Caix 3-section hydraulic examination couch - Flat upholstery (1 motor)
- Reference : 93051VOG
- Brand : VOG
- Discipline : General practitioner
- Base: Articulated arms (20 cm forward offset)
- Upholstery: 3 plans
- Height adjustment: Hydraulic motor
- Backrest adjustment: Gas spring
- Number of engines: 1
- Load capacity: 220 kg
- Net weight: 80 kg (67 cm) / 90 kg (80 cm)
- Guarantee : 3 years (excluding saddlery)
Technical specifications
- Foam thickness: 4 cm
- Density : 28 kg/m³
- Upholstery width: 67 cm or 80 cm (depending on model)
- Sofa length: 200 cm
- Base color: White
- Trendelenburg backrest/sofa: No
Dimensions
Model 67 cm:
- Total dimensions: L. 2000 × l. 670 × H. 580/960 mm
- Backrest: L. 600 × W. 670 mm
- Central part: L. 850 × l. 670mm
- Seat: L. 440 × W. 670 mm
80 cm model:
- Total dimensions: L. 2000 × l. 800 × H. 580/960 mm
- Backrest: L. 600 × W. 800 mm
- Central part: L. 850 × l. 800mm
- Seat: L. 440 × W. 800 mm
Accessories included
- Foot control
- Toilet paper holder (head end, backrest and central part)
- Note : Accessories must be ordered with the sofa.
